Inground installation saves space

Supplied standard with turntable recesses and built in rear slip plates for your wheelalignment needs.

Two front wheel turntable positions for caster measurement

Longer Sideway sliding plate fit to vehicles with different axle distance

Hydraulic interlocking and anti-explosion safety facility makes a stable and reliable operation.

Bilateral hydraulic synchronizing system ensures high synchronization performance.

Electric / Hydraulic jacking bridges with their own control box are also fitted. These allow for the vehicle tobe lifted off the platform.

Specification

Lifting Capacity(Main): 4500 kg

Lifting Capacity(Jack): 2000 kg

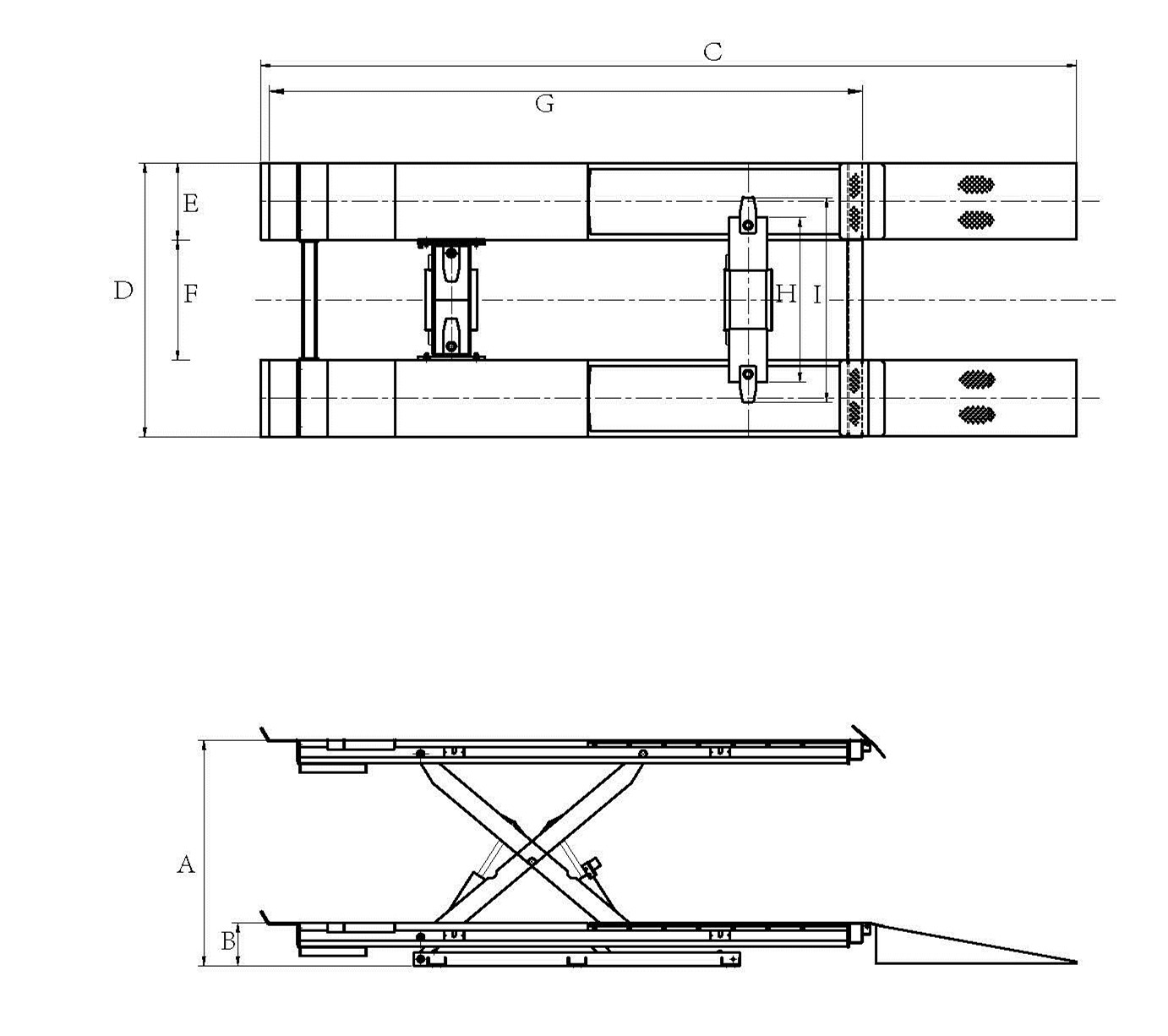

A Max. Lifting Height(Main): 1960 mm

   Max. Lifting Height(Jack): 455 mm

B Lowest Height(Main): 245 mm

   Lowest Height(Jack): 230 mm

C Overall Length: 6220 mm

D Overall Width: 2060 mm

E Runway Width: 245 mm

F Distance Between Runway: 900 mm

G Runway Length: 4720 mm

H Jack Width: 1240 mm

I Jack Max. Width: 1540 mm

Motor Power: 220V/380V, 50Hz, 3.0 kw

Lifting Time(Main: 58 s

Lifting Time (Jack): 5-15s

Lowering Time(Main): 45s

Lowering Time(Jack):  10-30s

Net Weight: 2670 kg

CLF reserves the right to change any specification without any notice.
