Lifting Capacity Optional: 4Ton, 6 Ton, 8 Ton
"Extra" Wide Between Posts
Lift Height: 4.0TON---1850mm
6.0TON---1750mm
8.0TON---1750mm
Imported Powder Coat Finish
Pneumatic Safety Lock or Electrical Safety Lock
1*2 Ton/3Ton Jacking Bridge
A Couple of Turntable Recesses Optional
Build in Rear Slip Plates Optional
Adjustable Width of Jacking Bridge
CLF reserves the right to change any specification without any notice.

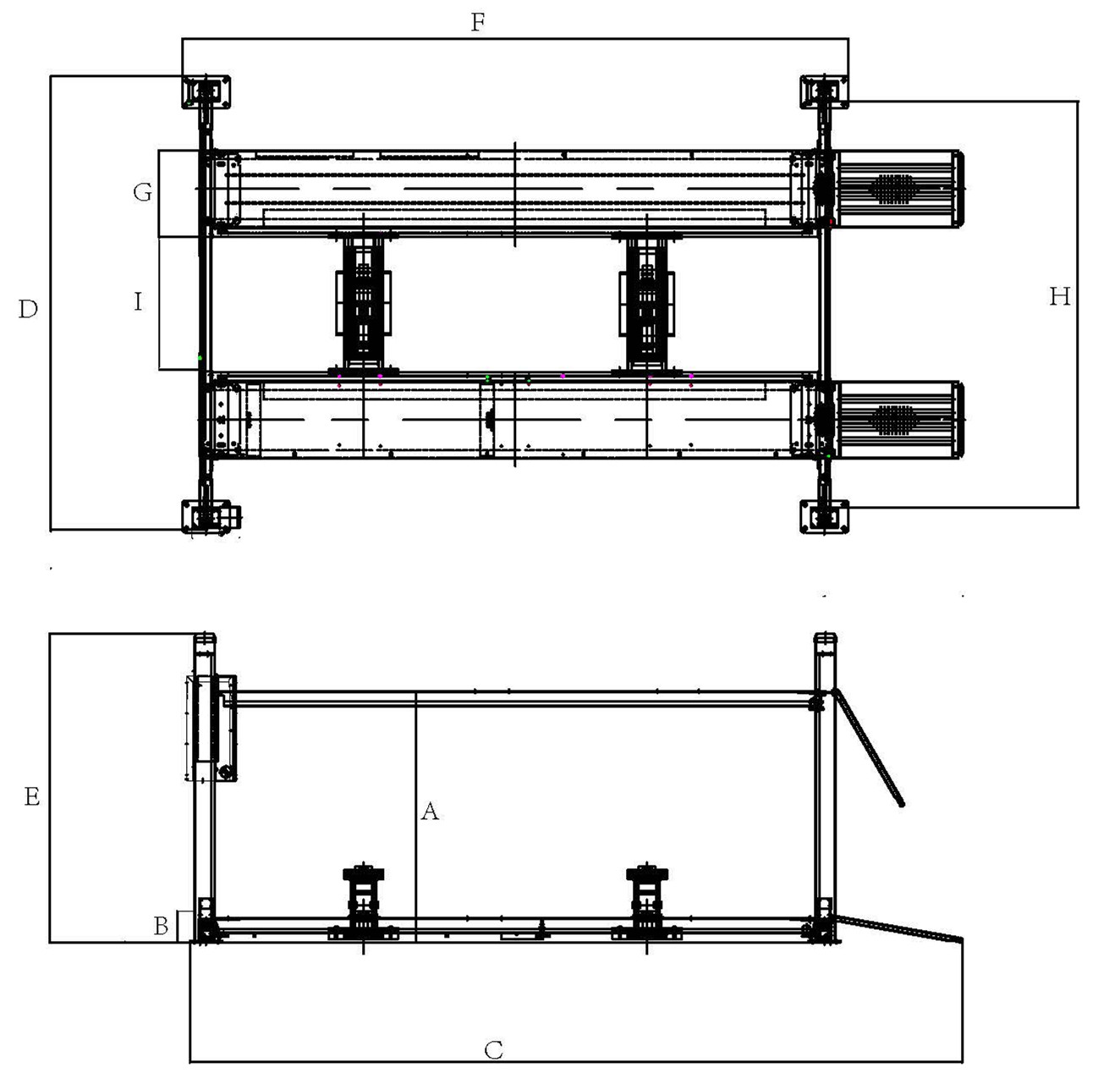

Specification | CLF-4000A | CLF-6000A | CLF-8000 |
Max. Lift Capacity | 4.0 Ton | 6.0 Ton | 8.0 Ton |
Alignment | Yes | Yes | No |
A Max. Lift Height | 1850 mm | 1750mm | 1750 mm |
B Lowest Height | 208 mm | 268 mm | 245 mm |
C Overall Length | 5610 mm | 6866 mm | 7330 mm |
D Overall Width | 3293 mm | 3303mm | 3865 mm |
E Overall Height | 2274 mm | 2160 mm | 2160 mm |
F Platform Length | 4610 mm | 5696 mm | 6160 mm |
G Platform Width | 575 mm | 600 mm | 700 mm |
H Width Between Posts | 2923 mm | 2993 mm | 3176 mm |
I Clearance Distance Between Platform | 976 mm | 960 mm | 1000 mm |
Power Supply |
220V, 2.2 KW,1 PH 380v,2.2 KW, 3 PH |
220V, 3.0 KW,1 PH 380v,3.0 KW, 3 PH |
220V, 3.0 KW,1 PH 380v,3.0 KW, 3 PH |
Net Weight | 1510 kg | 2140 kg | 2280 kg |
