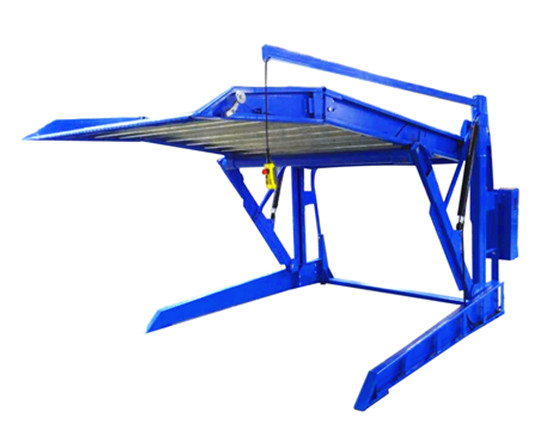

Two Post Lift
Model No.:CLF-6020

Tilting parking lift has become the benchmark design in the parking lift industry. This lift has proven to be the most versatile and reliable system in the mechanical parking industry.

The garage parking lift is a workhorse in both commercial and private, residential settings - ideal for the automotive enthusiast's dream garage. Car Lift is premium choice in settings where ceiling clearances are limited and vehicle heights are restricted.



Lifting Capacity 2700kg

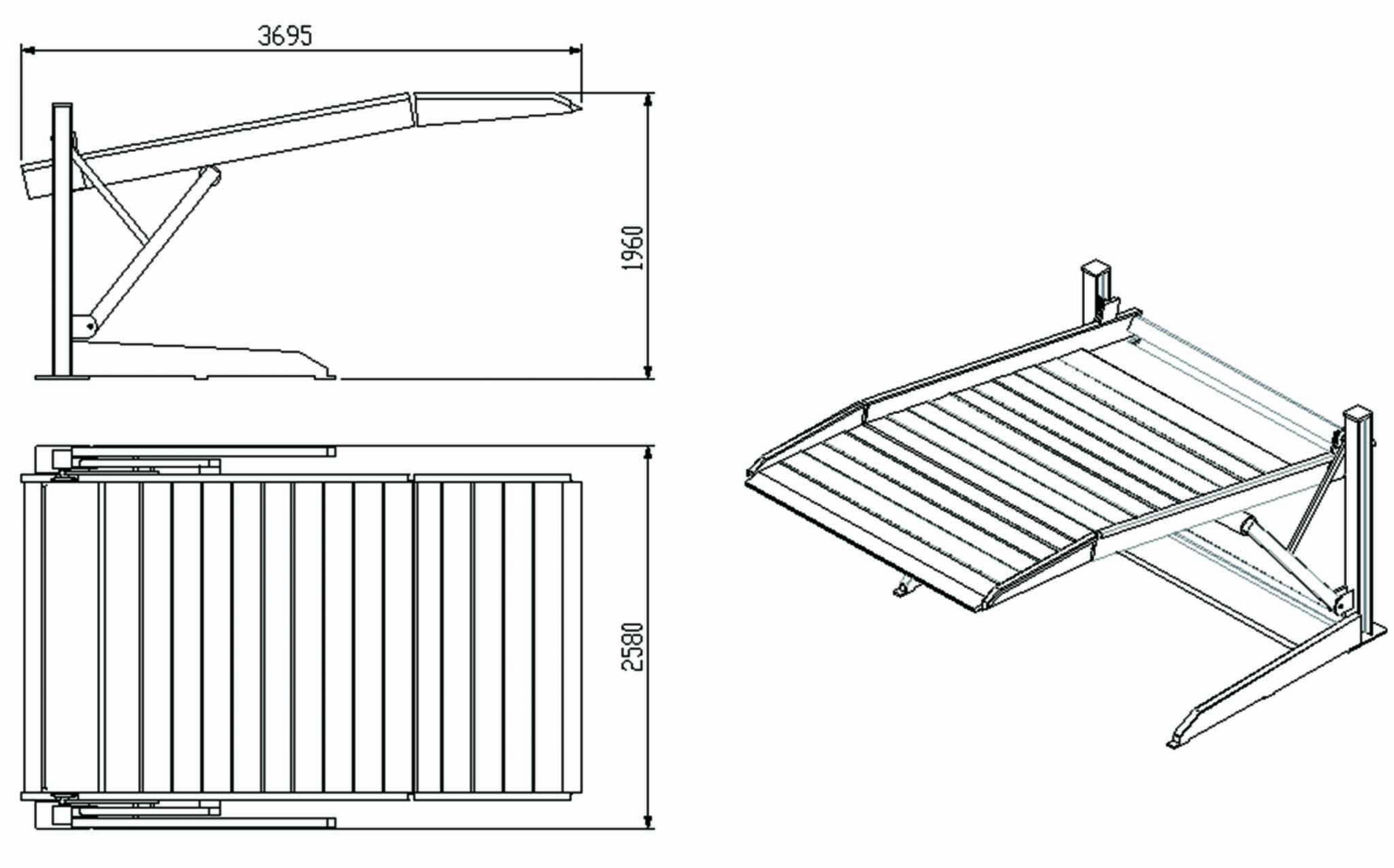

A-Overall Length 3890 mm
B-Overall Width 2500mm
C-Leg Length 2510 mm
D-Width of Ramp 2010mm
E-Length of Ramp 3430 mm
F-Max Clearance of Roller Bar 1690mm
G- Clearance Height
1650-2125mm

Lifting Time 45 Seconds

Motor Power: 220V/380V, 50Hz, 3.0 Kw

Net Weight: 935Kg



CLF reserves the right to change any specification without any notice.
