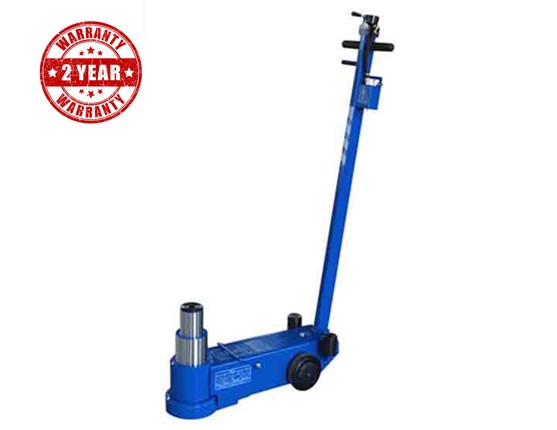

80/ 40 TON 2 STAGE AIR / HYDRAULIC AXLE JACK
Model No.:KT-80T2

* SUPER HEAVY DUTY, 2 Stage 80Ton and 40 Ton, built tough for the rigors of the Heavy Duty---Trucking, Bus, Agricultural and Fleet business

* The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions

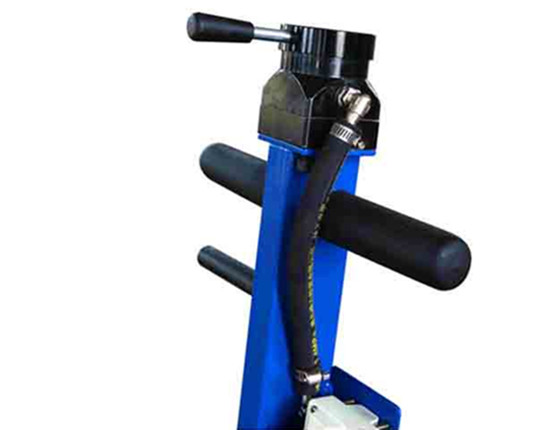

* The extra long 1300mm handle can be locked in 2 positions for easy positioning of this jack in hand to reach places.

* Integral Descent Metering maintains a controlled and safe lowering of the load

* Single piece base construction provides superior strength for increased load stability

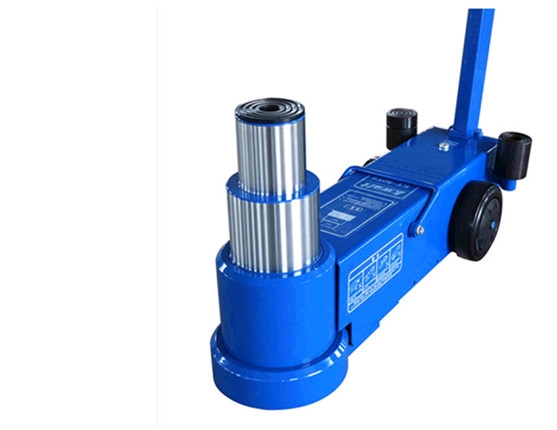

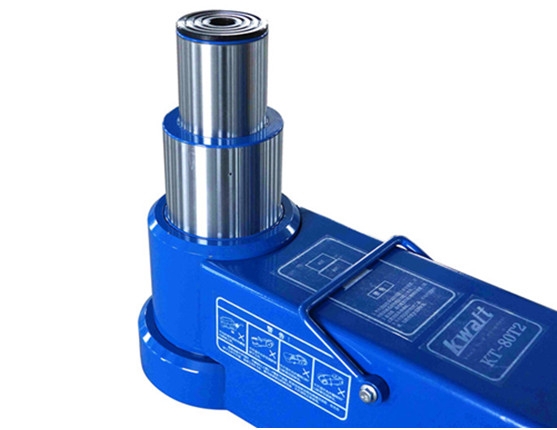

* Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring

* Air assisted lowering speeds up ram retraction

* Built in overload safety valve prevents damage to unit due to excessive load

* Comes with 2 extensions (75mm+ 50mm)

CLF reserves the right to change any specification without any notice.

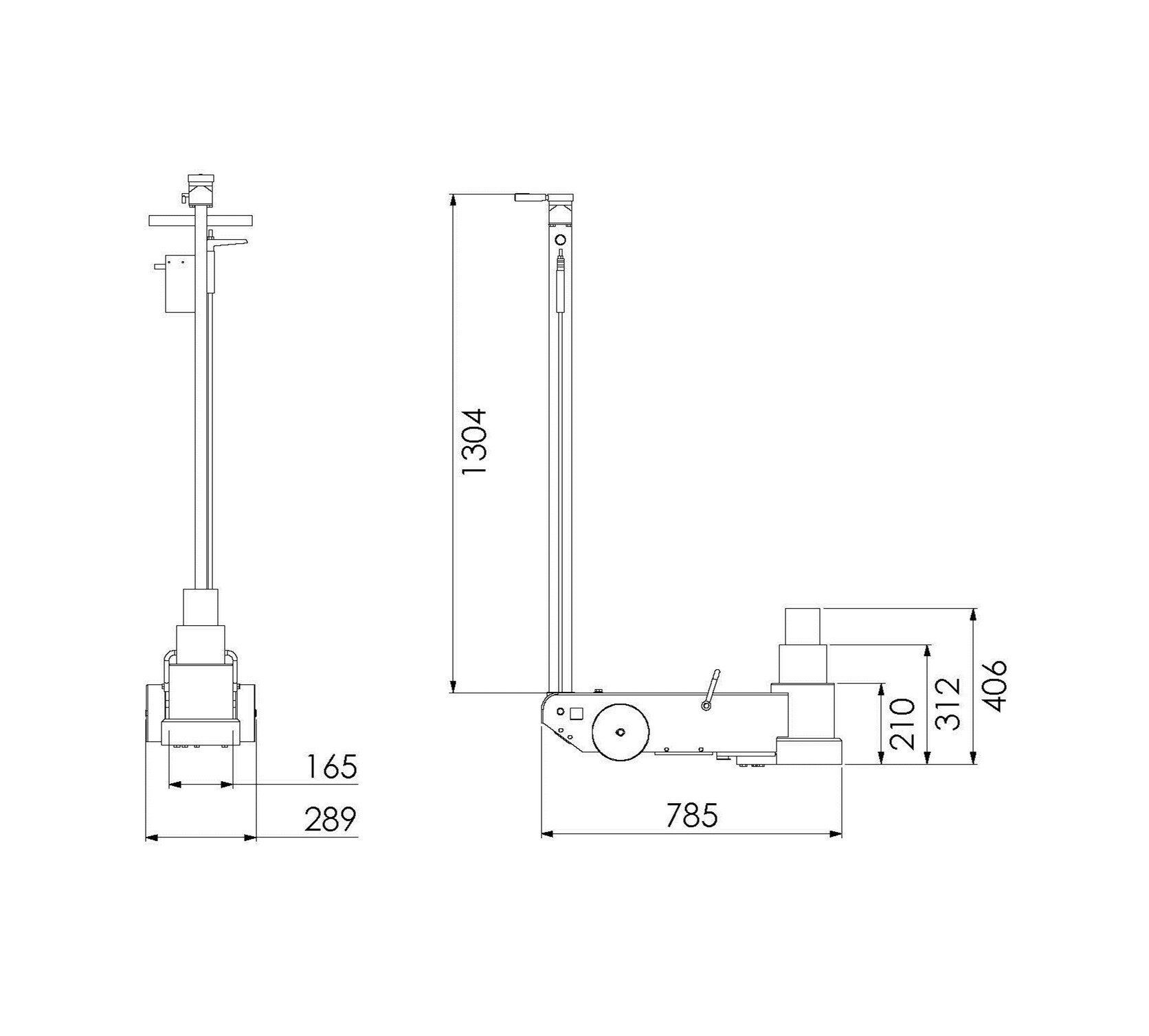

Capacity 40/80Ton
Extention 50mm / 75mm
Min. Height 222mm
Max. Height 422mm
Lifting Height 95mm/105mm
Working Air Pressure 0.9-1.2Mpa
Net Weight 71 Kg
Package 1450*340*340mm
