Model No.:CLF-6040

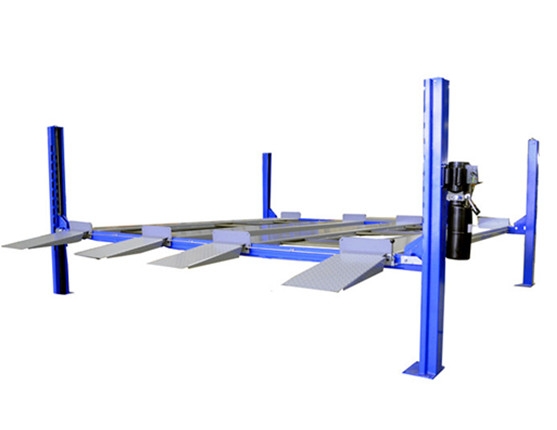

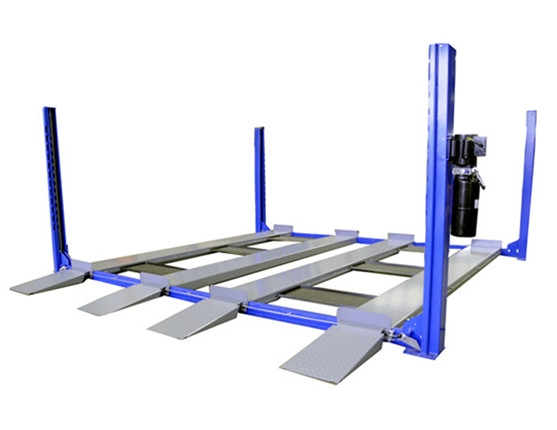

Four Post Parking Lift for commercial and home parking use.

One area has four parking space, more commercial.
Hydraulic driven, cable lifting system.


Lifting Capacity: 4000 kg

Motor Power: 380V/220V,50 Hz, 3.0 KW

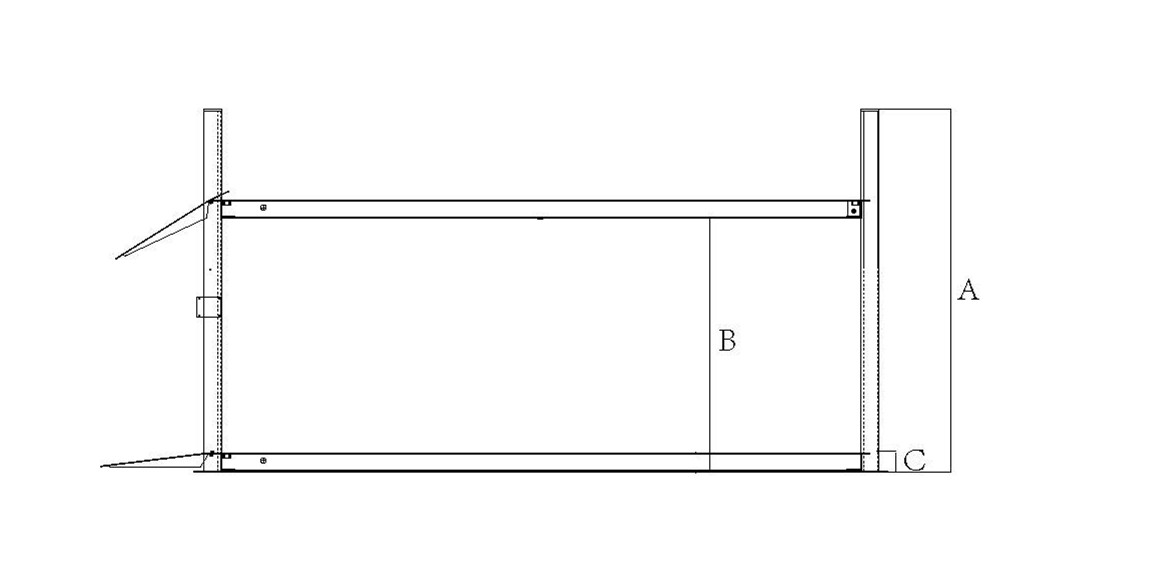

A  Overall Height: 2539 mm

B  Lifting Height: 1780 mm

C  Lowest Height: 133 mm

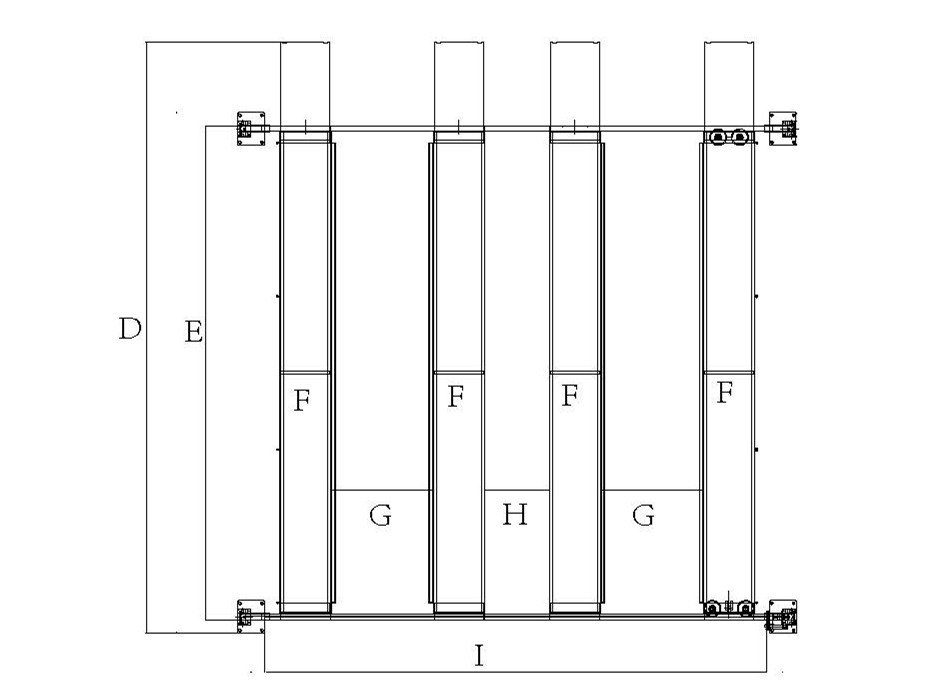

D  Overall Length: 5510 mm

E   Platform Length: 4600 mm

F  Platform Width: 482 mm

G  Distance between  Platform(1): 950 mm

H  Distance between  Platform(2): 600 mm

I   Distance between Two Post: 4708 mm

Net Weight: 1400 kg

CLF reserves the right to change any specification without any notice.
